Integrated Circuit Design-Lab1Question

March 2011

Integrated Circuit Design-Lab1Question

Swinburne University of Technology

Faculty of Engineering and Industrial Sciences

HET378 Integrated Circuit Design

Mini-Project 1

Hardware modeling

 Design of a Basic ALU

Laboratory

Part 1 : Hardware Modelling

Write a VHDL source code that implements the hardware of the sequencer shown below. Synthesize your source code and compare the results to the circuit.

(Your objective is to reproduce the same circuit . Simulation is not required)



Fig 1

Part 2

Design and Implementation of a

---

This lab design project which gives you more freedom to come up with your own solutions. The following write-up serves as a guideline to help you design the lab. However, if you find more efficient or more elegant ways to implement parts of the ALU, go ahead. Just make sure you justify your design and explain it clearly in the lab report write-up.



Pre-laboratory work:

Do the pre-lab4-bit ALU work for part 2

An Arithmetic and Logic Unit (ALU) is a combinational circuit that performs logic and arithmetic micro-operations on a pair of n-bit operands. The operations performed by an ALU are controlled by a set of function-select inputs. In this lab you will design a 4-bit ALU with 3 function-select inputs: Mode M, Select S1 and S0 inputs. The mode input M selects between a Logic (M=0) and Arithmetic (M=1) operation.

A block diagram of the ALU is given in Figure 2.



Figure 2: Block diagram of the 4-bit ALU.

The functions performed by the ALU are specified in Table I.



Table 1: Functions of ALU
M = 0 Logic
S1	S0	C0	FUNCTION	OPERATION (bit wise)
0	0	X	AiBi	AND
0	1	X	Ai + Bi	OR
1	0	X	AiÅ Bi	XOR
1	1	X	(AiÅ Bi)’	XNOR
M = 1 Arithmetic
S1	S0	C0	FUNCTION	OPERATION
0	0	0	A	Transfer A
0	0	1	A + 1	Increment A by 1
0	1	0	A + B	Add A and B
0	1	1	A + B + Carry in	sum of A and B and Cin
1	0	0	A + B'	A plus one's complement of B
1	0	1	A - B	Subtract B from A (i.e. B' + A + 1)
1	1	0	A' + B	B plus one's complement of A
1	1	1	B - A	B minus A (or A' + B + 1)

Note that the zero and Carry flag are cleared for logical operation and are affected by the arithmetic operations

This design project gives you freedom to come up with your own solutions. The following write-up serves as a guideline to help you design the ALU. However, if you find more efficient or more elegant ways to implement parts of the ALU, go ahead. Just make sure you justify your design and explain it clearly in the lab report write-up.
When doing arithmetic, you need to decide how to represent negative numbers. As is commonly done in digital systems, negative numbers are represented in  two’s complement. This has a number of advantages over the sign and magnitude representation such as easy addition or subtraction of mixed positive and negative numbers. Also, the number zero has a unique representation in two’s complement.

---



Design strategies

There are different ways to design the ALU. One method consists of writing the truth table for the one-bit ALU. This table has 6 inputs (M, S1, S0, C₀, A_i and B_i) and two outputs F_i and C_i+1. This can be done but may be tedious when it has to be done by hand.

An alternative way is to split the ALU into two modules, one Logic and one Arithmetic module. Designing each module separately will be easier than designing a bit-slice as one unit. A possible block diagram of the ALU is shown in Figure 2. It consists of three modules: 2:1 MUX, a Logic unit and an Arithmetic unit.

Fig 2

A third option is design the ALU using modular STD_logic functions

Laboratory work

(1)  Your task is to design and implement the 4-bit ALU using the Xilinx Foundation and Modelsim tools.  Follow the guidelines of the pre-lab in designing the 4-bit ALU. Develop two models for the ALU, and use Xilinx and Modelsim tools to simulate and synthesise  the design

(2)  Extend the design to a 16-bit ALU

---

Hand-in

You have to hand in a lab report that contains the following:

1. Synthesis results for part 1
2. VHDL code (design and test bench), simulation and synthesis results for part 2
3. Conclusion and discussion

The lab report is an important part of the laboratory. Write it carefully, be clear and well organized. It is the only way to convey that you did a great job in the lab.

Ismat Hijazin

March 2011

Integrated Circuit Design-Lab3Question

Swinburne University of Technology

Faculty of Engineering and industrial Sciences

HET378 Integrated Circuit Design

Mini Project 3

(a)  Design of Dynamic RAM Controller

Design a simplified dynamic RAM controller circuit  which has the following specifications:

The inputs to the circuit are a 16 bit address (ADDRIN), a read signal (RD), a write signal (WR), and an enable signal (EN). This circuit does not function until EN becomes 1, then the 16-bit ADDRIN is loaded in as a row address (15 down to 8) and a column address ( 7 down to 0) registers. Also RD and WR signals are “stored”. Subsequently, the row address is outputted at ( ADDROUT) along with the row address strobe (RAS) signal which is generated one clock cycle later. Then, the column address is outputted along with the column address strobe signal (CAS), which is generated one clock cycle later. Finally, if the operation is a write operation ( RD = 0, WR = 1), then the WE output is 1.Otherwise for a read operation ( RD = 1, WR = 0), the WE output remains 0. If RD and WR are both 1, then the controller outputs the row address only. The controller returns to the initial state after generating all the required signals.

Your submission should include

1.            Source code and test bench files along waveforms with comments added to verify the functionality of design

2.            Synthesis results and the estimated speed of the circuit

 Make sure that your design does not contain any unwanted latches.



(b)  Design of Variable Delay

In pipelined computer systems, data marches in streams. Since the stream can come from various sources, it is sometimes necessary to delay one stream so that it arrives at the pipeline input at the proper time. The following figure shown below which uses a two port memory is used to delay a parallel data stream. In a two port memory, one can simultaneously write to and read from the memory at the same time, provided that the same memory location is not involved. The system works as follows: A RESET initializes the device. When the START is asserted for one clock period, the write address (WADDR) is initialized to 0 and the read address (RADDR) is initialized to DELAY, the number of clock cycles that one wants the data delayed. During the next clock period, the first data word is presented to the memory input. For every clock pulse data is written and WADDR is incremented. However, for the first DELAY clock pulses, RADDR is decremented and no reading takes place. When RADDR reaches 0, reads begin and RADDR is incremented for each clock pulse after that point. Thus, after the start up delay, DATA_OUT will equal DATA_IN delayed by DELAY clock cycles. When STOP goes to 1 , the system finishes the transmission of the remaining data stored in memory. Note that this is a totally synchronous system. The two port memory can be viewed as being a clocked register array. It can be assumed that the source providing the data is also triggered of the same clock and that the START and STOP also change with the clock.

(1)        Develop a VHDL model description for the controller and the two port memory. The controller should be able to delay the input data from 0 to 15 clock pulses. The two port RAM should contain the minimum number of locations required to support the delay. Use four bit data words.

(2)          Simulate the design for different delays.

(3)        Synthesize your design

Integrated Circuit Design- Lab3 Report

Question 1 –VHDL CODING


----------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 11:10:07 05/14/2011
-- Design Name:
-- Module Name: Lab3Q1 - Behavioral
-- Project Name:
-- Target Devices:
-- Tool versions:
-- Description:
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.numeric_bit.all;


-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;


-- Uncomment the following library declaration if instantiating
-- any Xilinx primitives in this code.
--library UNISIM;
--use UNISIM.VComponents.all;






entity RAMController is
Port ( RD : in STD_LOGIC;
WR : in STD_LOGIC;
reset : in STD_LOGIC;
Clk : in STD_LOGIC;
     EN : in STD_LOGIC;
     ADDRIN : in STD_LOGIC_VECTOR (15 downto 0);
ADDROUT : out STD_LOGIC_VECTOR ( 7 downto 0);
     WE : out STD_LOGIC;
     RAS : out STD_LOGIC;
     CAS : out STD_LOGIC);
end RAMController;


architecture Behavioral of RAMController is


TYPE State_type IS (RASData, RASHigh, CASData,CASHigh,ReadData,WriteData, highImpedence);
SIGNAL state,nextState : State_type ;


begin


PROCESS (Reset, Clk, EN)
BEGIN
IF (Reset = '1') THEN
state <= RASData ;
ELSIF (EN = '1') THEN
IF (Clk'EVENT AND Clk = '1') THEN
state<=nextState;
END IF;
END IF;
END PROCESS;


PROCESS (state,ADDRIN,RD,WR)
BEGIN


CASE state IS






WHEN RASData =>
CAS <= '0';
WE <= '0';
RAS <= '0';
ADDROUT <= ADDRIN(15 downto 8);
nextState <= RASHigh;


WHEN RASHigh =>
ADDROUT <= ADDRIN(15 downto 8);
RAS <= '1';
CAS <= '0';
WE <= '0';
IF ((RD='1' and WR ='1')or(RD='0' and WR ='0')) then
nextState <= RASData;
ELSE
nextState <= CASData;
END IF;


WHEN CASData =>
RAS <= '0';
CAS <= '0';
WE <= '0';
ADDROUT <= ADDRIN(7 downto 0);
nextState <= CASHigh;


WHEN CASHigh =>
ADDROUT <= ADDRIN(7 downto 0);
CAS <= '1';
RAS <= '0';
WE <= '0';
IF(RD='1' and WR ='0') THEN
nextState <= ReadData;
ELSIF(RD='0' and WR ='1') THEN
nextState <= WriteData;
ELSE
nextState <= highImpedence;
END IF;


WHEN ReadData =>
RAS <= '0';
CAS <= '0';
WE <= '0';
ADDROUT <= ADDRIN(7 downto 0);
nextState <= RASData;


WHEN WriteData =>
RAS <= '0';
CAS <= '0';
WE <= '1';
ADDROUT <= ADDRIN(7 downto 0);
nextState <= RASData;


WHEN highImpedence =>
RAS <= '0';
CAS <= '0';
WE <= 'Z';
ADDROUT <= ADDRIN(7 downto 0);
nextState <= RASData;


END CASE;
end process;
end Behavioral;
























Question 1 – HDL Synthesis


=========================================================================
* HDL Synthesis *
=========================================================================


Performing bidirectional port resolution...


Synthesizing Unit <RAMController>.
Related source file is "C:/Users/LAU HUI YON/Desktop/HET378/Lab2/Lab3Q1/Lab3Q1.vhd".
Found finite state machine <FSM_0> for signal <state>.
-----------------------------------------------------------------------
| States | 7 |
| Transitions | 13 |
| Inputs | 2 |
| Outputs | 7 |
| Clock | Clk (rising_edge) |
| Clock enable | EN (positive) |
| Reset | reset (positive) |
| Reset type | asynchronous |
| Reset State | rasdata |
| Power Up State | rasdata |
| Encoding | automatic |
| Implementation | LUT |
-----------------------------------------------------------------------
Found 1-bit tristate buffer for signal <WE>.
Summary:
    inferred 1 Finite State Machine(s).
    inferred 1 Tristate(s).
Unit <RAMController> synthesized.




=========================================================================
HDL Synthesis Report


Macro Statistics
# Tristates : 1
1-bit tristate buffer : 1


=========================================================================


=========================================================================
* Advanced HDL Synthesis *
=========================================================================


Analyzing FSM <FSM_0> for best encoding.
Optimizing FSM <state/FSM> on signal <state[1:7]> with one-hot encoding.
---------------------------
State | Encoding
---------------------------
rasdata | 0000001
rashigh | 0000010
casdata | 0000100
cashigh | 0001000
readdata | 0010000
writedata | 0100000
highimpedence | 1000000
---------------------------


=========================================================================
Advanced HDL Synthesis Report


Macro Statistics
# FSMs : 1


=========================================================================


=========================================================================
* Low Level Synthesis *
=========================================================================


Optimizing unit <RAMController> ...


Mapping all equations...
Building and optimizing final netlist ...
Found area constraint ratio of 100 (+ 5) on block RAMController, actual ratio is 1.


Final Macro Processing ...


=========================================================================
Final Register Report


Macro Statistics
# Registers : 7
Flip-Flops : 7


Question 1 –TIMING REPORT




=========================================================================
TIMING REPORT


NOTE: THESE TIMING NUMBERS ARE ONLY A SYNTHESIS ESTIMATE.
FOR ACCURATE TIMING INFORMATION PLEASE REFER TO THE TRACE REPORT
GENERATED AFTER PLACE-and-ROUTE.


Clock Information:
------------------
-----------------------------------+------------------------+-------+
Clock Signal | Clock buffer(FF name) | Load |
-----------------------------------+------------------------+-------+
Clk | BUFGP | 7 |
-----------------------------------+------------------------+-------+


Asynchronous Control Signals Information:
----------------------------------------
-----------------------------------+------------------------+-------+
Control Signal | Buffer(FF name) | Load |
-----------------------------------+------------------------+-------+
reset | IBUF | 7 |
-----------------------------------+------------------------+-------+


Timing Summary:
---------------
Speed Grade: -5


Minimum period: 2.708ns (Maximum Frequency: 369.324MHz)
Minimum input arrival time before clock: 3.391ns
Maximum output required time after clock: 6.905ns
Maximum combinational path delay: 5.753ns


Timing Detail:
--------------
All values displayed in nanoseconds (ns)


=========================================================================
Timing constraint: Default period analysis for Clock 'Clk'
Clock period: 2.708ns (frequency: 369.324MHz)
Total number of paths / destination ports: 10 / 7
-------------------------------------------------------------------------
Delay: 2.708ns (Levels of Logic = 2)
Source: state_FSM_FFd6 (FF)
Destination: state_FSM_FFd7 (FF)
Source Clock: Clk rising
Destination Clock: Clk rising


Data Path: state_FSM_FFd6 to state_FSM_FFd7
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
FDCE:C->Q 6 0.514 0.599 state_FSM_FFd6 (state_FSM_FFd6)
LUT3_L:I2->LO 1 0.612 0.103 state_FSM_FFd7-In_SW0 (N7)
LUT4:I3->O 1 0.612 0.000 state_FSM_FFd7-In (state_FSM_FFd7-In)
FDPE:D 0.268 state_FSM_FFd7
----------------------------------------
Total 2.708ns (2.006ns logic, 0.702ns route)
(74.1% logic, 25.9% route)


=========================================================================
Timing constraint: Default OFFSET IN BEFORE for Clock 'Clk'
Total number of paths / destination ports: 17 / 12
-------------------------------------------------------------------------
Offset: 3.391ns (Levels of Logic = 3)
Source: RD (PAD)
Destination: state_FSM_FFd7 (FF)
Destination Clock: Clk rising


Data Path: RD to state_FSM_FFd7
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
IBUF:I->O 5 1.106 0.690 RD_IBUF (RD_IBUF)
LUT3_L:I0->LO 1 0.612 0.103 state_FSM_FFd7-In_SW0 (N7)
LUT4:I3->O 1 0.612 0.000 state_FSM_FFd7-In (state_FSM_FFd7-In)
FDPE:D 0.268 state_FSM_FFd7
----------------------------------------
Total 3.391ns (2.598ns logic, 0.793ns route)
(76.6% logic, 23.4% route)


=========================================================================
Timing constraint: Default OFFSET OUT AFTER for Clock 'Clk'
Total number of paths / destination ports: 71 / 11
-------------------------------------------------------------------------
Offset: 6.905ns (Levels of Logic = 4)
Source: state_FSM_FFd2 (FF)
Destination: ADDROUT<7> (PAD)
Source Clock: Clk rising


Data Path: state_FSM_FFd2 to ADDROUT<7>
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
FDCE:C->Q 4 0.514 0.651 state_FSM_FFd2 (state_FSM_FFd2)
LUT4:I0->O 1 0.612 0.000 ADDROUT<0>11 (ADDROUT<0>1)
MUXF5:I0->O 8 0.278 0.712 ADDROUT<0>1_f5 (N01)
LUT4:I1->O 1 0.612 0.357 ADDROUT<7>1 (ADDROUT_7_OBUF)
OBUF:I->O 3.169 ADDROUT_7_OBUF (ADDROUT<7>)
----------------------------------------
Total 6.905ns (5.185ns logic, 1.720ns route)
(75.1% logic, 24.9% route)


=========================================================================
Timing constraint: Default path analysis
Total number of paths / destination ports: 16 / 8
-------------------------------------------------------------------------
Delay: 5.753ns (Levels of Logic = 3)
Source: ADDRIN<7> (PAD)
Destination: ADDROUT<7> (PAD)


Data Path: ADDRIN<7> to ADDROUT<7>
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
IBUF:I->O 1 1.106 0.509 ADDRIN_7_IBUF (ADDRIN_7_IBUF)
LUT4:I0->O 1 0.612 0.357 ADDROUT<7>1 (ADDROUT_7_OBUF)
OBUF:I->O 3.169 ADDROUT_7_OBUF (ADDROUT<7>)
----------------------------------------
Total 5.753ns (4.887ns logic, 0.866ns route)
(84.9% logic, 15.1% route)


=========================================================================




Total REAL time to Xst completion: 5.00 secs
Total CPU time to Xst completion: 5.25 secs


-->


Total memory usage is 190124 kilobytes


Number of errors : 0 ( 0 filtered)
Number of warnings : 0 ( 0 filtered)
Number of infos : 0 ( 0 filtered)

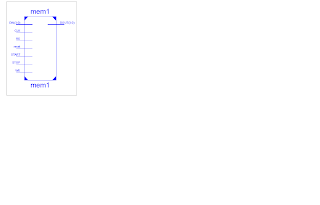

Figure 1 Question 1 Schematic diagram

Question 1-VHDL TESTBENCH


--------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 22:47:49 05/16/2011
-- Design Name:
-- Module Name: C:/Users/LAU HUI YON/Desktop/HET378/Lab2/Lab3Q1/Lab1Q1testbench.vhd
-- Project Name: Lab3Q1
-- Target Device:
-- Tool versions:
-- Description:
--
-- VHDL Test Bench Created by ISE for module: RAMController
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
-- Notes:
-- This testbench has been automatically generated using types std_logic and
-- std_logic_vector for the ports of the unit under test. Xilinx recommends
-- that these types always be used for the top-level I/O of a design in order
-- to guarantee that the testbench will bind correctly to the post-implementation
-- simulation model.
--------------------------------------------------------------------------------
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;


-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--USE ieee.numeric_std.ALL;


ENTITY Lab1Q1testbench IS
END Lab1Q1testbench;


ARCHITECTURE behavior OF Lab1Q1testbench IS


-- Component Declaration for the Unit Under Test (UUT)


COMPONENT RAMController
PORT(
RD : IN std_logic;
WR : IN std_logic;
reset : IN std_logic;
Clk : IN std_logic;
EN : IN std_logic;
ADDRIN : IN std_logic_vector(15 downto 0);
ADDROUT : OUT std_logic_vector(7 downto 0);
WE : OUT std_logic;
RAS : OUT std_logic;
CAS : OUT std_logic
);
END COMPONENT;


--Inputs
signal RD : std_logic := '0';
signal WR : std_logic := '0';
signal reset : std_logic := '0';
signal Clk : std_logic := '0';
signal EN : std_logic := '0';
signal ADDRIN : std_logic_vector(15 downto 0) := (others => '0');


    --Outputs
signal ADDROUT : std_logic_vector(7 downto 0);
signal WE : std_logic;
signal RAS : std_logic;
signal CAS : std_logic;


-- Clock period definitions
constant Clk_period : time := 10 ns;


BEGIN


    -- Instantiate the Unit Under Test (UUT)
uut: RAMController PORT MAP (
RD => RD,
WR => WR,
reset => reset,
Clk => Clk,
EN => EN,
ADDRIN => ADDRIN,
ADDROUT => ADDROUT,
WE => WE,
RAS => RAS,
CAS => CAS
);


-- Clock process definitions
Clk_process :process
begin
        Clk <= '0';
        wait for Clk_period/2;
        Clk <= '1';
        wait for Clk_period/2;
end process;




-- Stimulus process
stim_proc: process
begin
-- hold reset state for 100 ns.
wait for 100 ns;


wait for Clk_period*10;


-- insert stimulus here
        ADDRIN <= "1000110011010110";
        EN <= '1';
        RAS <= '1';wait for 10 ns;
        CAS <= '1';wait for 10 ns;
        RD <= '0';
        WR <= '1';wait for 10 ns;
        RD <= '1';
        WR <= '0';wait for 10 ns;
        RD <= '1';
        WR <= '1';wait for 10 ns;
wait;
end process;


END;

Figure 2 Question 1 testbench Simulation results

Part 2- VHDL coding
----------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 23:19:42 05/17/2011
-- Design Name:
-- Module Name: Lab3Q2 - Behavioral
-- Project Name:
-- Target Devices:
-- Tool versions:
-- Description:
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.std_logic_unsigned.all;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.numeric_bit.all;




-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;


-- Uncomment the following library declaration if instantiating
-- any Xilinx primitives in this code.
--library UNISIM;
--use UNISIM.VComponents.all;


entity mem1 is
port (
             START : in std_logic;
                     STOP : in std_logic;
                     reset: in std_logic;
                     CLK : in std_logic;
WE : in std_logic;
                     RE: in std_logic;
                     DIN : in std_logic_vector(3 downto 0);
                     DOUT : out std_logic_vector(3 downto 0));
end mem1;


architecture behavioral of mem1 is


type ram_type is array (15 downto 0) of std_logic_vector (3 downto 0);
signal RAM : ram_type;
signal WADDR : std_logic_vector(3 downto 0);
signal RADDR : std_logic_vector(3 downto 0);
signal Wdata : std_logic_vector(3 downto 0);
signal Rdata : std_logic_vector(3 downto 0);




begin
process (CLK)
variable delay: std_logic_vector(3 downto 0);
begin


if rising_edge(CLK) then
if reset='1' and START ='1' and RE='0' and WE='1' then
     WADDR <= "0000";
         RADDR <= delay;
            Wdata <= DIN;
         RAM(conv_integer(WADDR))<=Wdata;
            WADDR <= WADDR + 1;
    elsif RE='0' and WE='0' then
    RADDR <= RADDR - 1;
    elsif RE='1' and WE='0' then
RADDR <= RADDR + 1;
end if;
    if STOP ='1' then


         Wdata<=RAM(conv_integer(WADDR));
         DOUT <=Wdata;
    end if;
end if;
end process;


end Behavioral;




Part 2- HDL Synthesis




=========================================================================
* HDL Synthesis *
=========================================================================


Performing bidirectional port resolution...


Synthesizing Unit <mem1>.
Related source file is "C:/Users/LAU HUI YON/Desktop/HET378/Lab2/Lab3Q2/Lab3Q2.vhd".
WARNING:Xst:653 - Signal <delay> is used but never assigned. This sourceless signal will be automatically connected to value 0000.
WARNING:Xst:1780 - Signal <Rdata> is never used or assigned. This unconnected signal will be trimmed during the optimization process.
Found 16x4-bit single-port RAM <Mram_RAM> for signal <RAM>.
Found 4-bit register for signal <DOUT>.
Found 4-bit updown counter for signal <RADDR>.
Found 4-bit up counter for signal <WADDR>.
Found 4-bit register for signal <Wdata>.
Summary:
    inferred 1 RAM(s).
    inferred 2 Counter(s).
    inferred 8 D-type flip-flop(s).
Unit <mem1> synthesized.




=========================================================================
HDL Synthesis Report


Macro Statistics
# RAMs : 1
16x4-bit single-port RAM : 1
# Counters : 1
4-bit up counter : 1
# Registers : 2
4-bit register : 2


=========================================================================


=========================================================================
* Advanced HDL Synthesis *
=========================================================================




Synthesizing (advanced) Unit <mem1>.
INFO:Xst:3231 - The small RAM <Mram_RAM> will be implemented on LUTs in order to maximize performance and save block RAM resources. If you want to force its implementation on block, use option/constraint ram_style.
-----------------------------------------------------------------------
| ram_type | Distributed | |
-----------------------------------------------------------------------
| Port A |
| aspect ratio | 16-word x 4-bit | |
| clkA | connected to signal <CLK> | rise |
| weA | connected to signal <_and0000> | high |
| addrA | connected to signal <WADDR> | |
| diA | connected to signal <Wdata> | |
| doA | connected to internal node | |
-----------------------------------------------------------------------
Unit <mem1> synthesized (advanced).


=========================================================================
Advanced HDL Synthesis Report


Macro Statistics
# RAMs : 1
16x4-bit single-port distributed RAM : 1
# Counters : 1
4-bit up counter : 1
# Registers : 8
Flip-Flops : 8


=========================================================================


=========================================================================
* Low Level Synthesis *
=========================================================================


Optimizing unit <mem1> ...


Mapping all equations...
Building and optimizing final netlist ...
Found area constraint ratio of 100 (+ 5) on block mem1, actual ratio is 0.


Final Macro Processing ...


=========================================================================
Final Register Report


Macro Statistics
# Registers : 12
Flip-Flops : 12


=========================================================================








Question 2 –TIMING REPORT


=========================================================================
TIMING REPORT


NOTE: THESE TIMING NUMBERS ARE ONLY A SYNTHESIS ESTIMATE.
FOR ACCURATE TIMING INFORMATION PLEASE REFER TO THE TRACE REPORT
GENERATED AFTER PLACE-and-ROUTE.


Clock Information:
------------------
-----------------------------------+------------------------+-------+
Clock Signal | Clock buffer(FF name) | Load |
-----------------------------------+------------------------+-------+
CLK | BUFGP | 16 |
-----------------------------------+------------------------+-------+


Asynchronous Control Signals Information:
----------------------------------------
No asynchronous control signals found in this design


Timing Summary:
---------------
Speed Grade: -5


Minimum period: 3.663ns (Maximum Frequency: 273.011MHz)
Minimum input arrival time before clock: 4.670ns
Maximum output required time after clock: 4.040ns
Maximum combinational path delay: No path found


Timing Detail:
--------------
All values displayed in nanoseconds (ns)


=========================================================================
Timing constraint: Default period analysis for Clock 'CLK'
Clock period: 3.663ns (frequency: 273.011MHz)
Total number of paths / destination ports: 54 / 32
-------------------------------------------------------------------------
Delay: 3.663ns (Levels of Logic = 2)
Source: WADDR_0 (FF)
Destination: Wdata_0 (FF)
Source Clock: CLK rising
Destination Clock: CLK rising


Data Path: WADDR_0 to Wdata_0
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
FDE:C->Q 12 0.514 0.817 WADDR_0 (WADDR_0)
RAM16X1S:A0->O 1 1.065 0.387 Mram_RAM1 (_varindex0000<0>)
LUT3:I2->O 1 0.612 0.000 Wdata_mux0000<0>1 (Wdata_mux0000<0>)
FDE:D 0.268 Wdata_0
----------------------------------------
Total 3.663ns (2.459ns logic, 1.204ns route)
(67.1% logic, 32.9% route)


=========================================================================
Timing constraint: Default OFFSET IN BEFORE for Clock 'CLK'
Total number of paths / destination ports: 64 / 20
-------------------------------------------------------------------------
Offset: 4.670ns (Levels of Logic = 3)
Source: WE (PAD)
Destination: Wdata_0 (FF)
Destination Clock: CLK rising


Data Path: WE to Wdata_0
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
IBUF:I->O 1 1.106 0.509 WE_IBUF (WE_IBUF)
LUT4:I0->O 9 0.612 0.849 _and00001 (_and0000)
LUT2:I0->O 4 0.612 0.499 Wdata_not00011 (Wdata_not0001)
FDE:CE 0.483 Wdata_0
----------------------------------------
Total 4.670ns (2.813ns logic, 1.857ns route)
(60.2% logic, 39.8% route)


=========================================================================
Timing constraint: Default OFFSET OUT AFTER for Clock 'CLK'
Total number of paths / destination ports: 4 / 4
-------------------------------------------------------------------------
Offset: 4.040ns (Levels of Logic = 1)
Source: DOUT_3 (FF)
Destination: DOUT<3> (PAD)
Source Clock: CLK rising


Data Path: DOUT_3 to DOUT<3>
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
FDE:C->Q 1 0.514 0.357 DOUT_3 (DOUT_3)
OBUF:I->O 3.169 DOUT_3_OBUF (DOUT<3>)
----------------------------------------
Total 4.040ns (3.683ns logic, 0.357ns route)
(91.2% logic, 8.8% route)


=========================================================================




Total REAL time to Xst completion: 7.00 secs
Total CPU time to Xst completion: 6.88 secs


-->


Total memory usage is 195584 kilobytes


Number of errors : 0 ( 0 filtered)
Number of warnings : 2 ( 0 filtered)
Number of infos : 1 ( 0 filtered)

Figure 3 Question2 Schematic diagram

Question 2- VHDL TESTBENCH


--------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 22:07:20 05/19/2011
-- Design Name:
-- Module Name: C:/Users/LAU HUI YON/Desktop/HET378/Lab2/Lab3Q2/Lab3Q2finaltestbench.vhd
-- Project Name: Lab3Q2
-- Target Device:
-- Tool versions:
-- Description:
--
-- VHDL Test Bench Created by ISE for module: mem1
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
-- Notes:
-- This testbench has been automatically generated using types std_logic and
-- std_logic_vector for the ports of the unit under test. Xilinx recommends
-- that these types always be used for the top-level I/O of a design in order
-- to guarantee that the testbench will bind correctly to the post-implementation
-- simulation model.
--------------------------------------------------------------------------------
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;


-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--USE ieee.numeric_std.ALL;


ENTITY Lab3Q2finaltestbench IS
END Lab3Q2finaltestbench;


ARCHITECTURE behavior OF Lab3Q2finaltestbench IS


-- Component Declaration for the Unit Under Test (UUT)


COMPONENT mem1
PORT(
START : IN std_logic;
STOP : IN std_logic;
reset : IN std_logic;
CLK : IN std_logic;
WE : IN std_logic;
RE : IN std_logic;
DIN : IN std_logic_vector(3 downto 0);
DOUT : OUT std_logic_vector(3 downto 0)
);
END COMPONENT;




--Inputs
signal START : std_logic := '0';
signal STOP : std_logic := '0';
signal reset : std_logic := '0';
signal CLK : std_logic := '0';
signal WE : std_logic := '0';
signal RE : std_logic := '0';
signal DIN : std_logic_vector(3 downto 0) := (others => '0');


    --Outputs
signal DOUT : std_logic_vector(3 downto 0);


-- Clock period definitions
constant CLK_period : time := 10 ns;


BEGIN


    -- Instantiate the Unit Under Test (UUT)
uut: mem1 PORT MAP (
START => START,
STOP => STOP,
reset => reset,
CLK => CLK,
WE => WE,
RE => RE,
DIN => DIN,
DOUT => DOUT
);


-- Clock process definitions
CLK_process :process
begin
        CLK <= '0';
        wait for CLK_period/2;
        CLK <= '1';
        wait for CLK_period/2;
end process;




-- Stimulus process
stim_proc: process
begin
-- hold reset state for 100 ns.
wait for 100 ns;


wait for CLK_period*10;


-- insert stimulus here
     DIN <= "1011";
        reset <= '1';
        START <= '1';
        RE <= '0';
        WE <= '1';wait for 10 ns;
        RE <= '0';
        WE <= '0';wait for 10 ns;
     RE <= '1';
        WE <= '0';wait for 10 ns;
STOP <= '1';
wait;
end process;


END;


















































Delay of 4 clock pulses

Delay of 8 clock pulses



Delay of 13 clock pulses





Figure 4 Question 2 testbench Simulation results





















Discussion
    For Question 1, the functionality of the design can be verified based on the simulation waveform. When EN goes high, the row address and RAS goes to high. After one clock pulse, the column address and CAS goes to high. Besides that, WE goes high when RD and WR are high. WR is low when RD is high and WR is low. When both RD and WR goes to high, the row address goes to high.
The estimated speed of the circuit is 5.753ns.














Conclusion:


The implementation of the code can emphasize efficiency or speed of coding, using a structural design for high constraint designs for such situations as embedded systems that require the strictest coding practices due to size, heat, power draw, and other factors.
As I was completing the project, I found many roadblocks along the way. I found out the "if" statements are considered behavioral code only and that no structural code can be written with "if" statements. Further, I found out that "if" structures have very specific structures that do not mix. Thus, I corrected the situation by creating behavioral code to simulate the functionality. Finally, I learned how to better able to simulate materials in ISIM software by being able to decide which variables to simulate for detecting problems/bugs.
